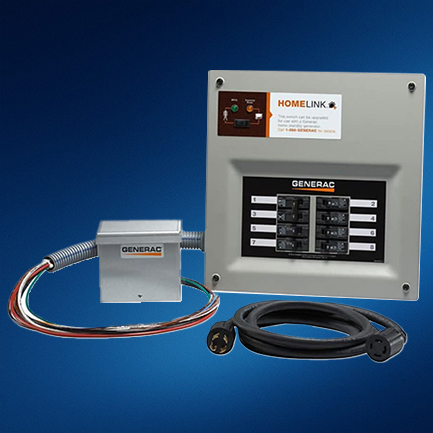

Generac HomeLink Transfer Switch
Base Model #: 6854_ | Variant #: 6854
(1) 10′ 30-Amp (L14-30) Power Cord
(1) 30-Amp (L14-30) Aluminum Power Inlet Box (must be hardwired)
Meets your needs today and when you’re ready to upgrade
$459.99
(05)
Generac 30-A HomeLink Upgradeable Manual Transfer Switch
- Meets your needs today and when you’re ready to upgrade
Pre-Wired 30-Amp Manual Transfer Switch
- Interchangeable breakers make it easy to reconfigure or expand
Also Includes
- (1) 10′ 30-Amp (L14-30) Power Cord
- (1) 30-Amp (L14-30) Aluminum Power Inlet Box (must be hardwired)
Safely Power Hard-Wired Circuits
- The electricity you need to power your furnace, sump pumps, etc.
From Manual to Automatic – Essential Circuit Coverage
- From a portable to a standby generator (11kW Max)
Ready When You Are (By Cert Electrician)
- Field-upgradable to an automatic switch panel and new faceplate
Includes 8 Total Circuits (Expands up to 10)
- (1) 30-Amp 2-Pole, (1) 20-Amp 1-Pole, and (5) 15-Amp 1-Pole
Versatile Design and Flexible and Cost Effective Installation
- Can be used with GFCI and Non-GFCI portable generators
- Uses 1″ standard, tandem, GFCI and AFCI breakers
*Req’s 50-Amp 2-Pole Breaker in Main Load Center (Not Included)
5-Year Limited Warranty
Overview:
- Product Weight: 27.2 lbs
- Width: 15-13/16″
- Height: 4″
Specifications:
- Voltage: 120, 240V
- Frequency: 60 Hz
- Electrical Phases: 1
- Max Generator Input: 30A
- Enclosure Material: NEMA 1R
